The Mediawall is multi-leveled. The communication level with all its visualization possibilities, the electronic level housing all your A/V equipment, and the storage level for moveable equipment and software. The upper doors, which conceal the communication level, are completely retractable into patented channels, thus providing unobstructed viewing of all presentation surfaces.

THE CHOICE IS YOURS
Each individual component that makes up the Mediawall System is purpose-designed to perform a specific communications task. This building block design enables you to create a system custom-made for your audience and room size.

THE COMPLETE ANSWER
Whether the answer to your need is a fully-integrated cabinet format or individual cabinet arrangements, Mediawall's modular design enables you to create it quickly and simply. There are 4 different widths and 2 heights of cabinet. With these you can design a multi-media centre that not only incorporates technical equipment tailored to your needs but also forms an elegant item of interior decor. Within it, you will have the answer to every type of communication, teaching and presentation problem: the right tool for every job.

The Mediawall modular design can combine all the technical elements necessary for dynamic communication in a customized, integrated wall - full powered for communication when in use, fashionable and unobtrusive when closed. Lockable and secure.

Specific to your needs.
Each module of the Mediawall is customized to your specific needs. Your room size and presentation requirements determine the equipment and storage capabilities of the unit as a whole. Two standard heights are available, as well as side and ceiling trims for a custom fit along any length wall. Created to blend with existing architecture or corporate design, the Mediawall is available in a number of finishes from melamine, to colorized ash veneers, to custom hardwood finishes.

The design concept brings together the very best in materials and workmanship to provide a unique range of high quality safety conscious and esthetically pleasing products. Choice of colors, the smoothly rounded contours, the distinctive frames give the boards and media furniture an esthetically balance look. This close attention to design is particularly important in the learning environment.

QUALITY - SAFETY - STYLE

The Mediawall provides more...

• More effective training course support
• More convincing presentations
• More creative conference environment
• Plus it's modular

Yes... you can take it with you! Once installed, if your space requirements grow, your Mediawall can be dismantled and re-installed at your new facility. It is truly a lifetime investment.

Description: Prefabricated Case work System: General
Specialty casework system to be constructed with an extruded aluminum structure which inserts into a track system that extends the entire length of the specific space. Each component to have four independent levelers that attach into the track system to assure that each component is plumb and level with the next. Upper doors on the communication element to bifold and retrace into pockets such that inside components are visible form any angle in the room. Storage elements upper doors and lower doors to bifold. Bifold system to have delron roller guide which travels in an aluminum track to assure a smooth non-binding travel. Hinges to be concealed with leveling adjustment.

Finish of cabinet system to be ash veneer with RAL. Color to be determined by architect. Accent aluminum profile vertically and horizontally to have RAL. Color to be determined by architect.

Entire system shall have integrated cable management system that connects one element to the next. "Mediawall" shall be symmetrical, filler panels shall be provided where required.

Description: Prefabricated Casework System: Specific
Rear Projection Element with integrated front flush mounted rear projection screen. Upper and lower doors, upper doors retractable, lower part of unit with storage shelves.

Monitor Element for TV monitor with picture diagonal up to 27". Upper and lower doors, upper doors retractable, lower part of unit with storage shelves.

Front Projection Element with tiltable projection screen and two writing surfaces in front of screen. Board surface steel white, tiltable projection screen melamine resin coated matte white, 20 degree tiltable, with upper and lower doors, upper doors retractable, lower part of unit with storage shelves.

Flip Chart Element with pivoted swing out flip chart in the communication area. Hook attachment for flip chart pads. Upper and lower doors, upper doors retractable, lower part of unit with storage shelves.

QUALITY - SAFETY - STYLE

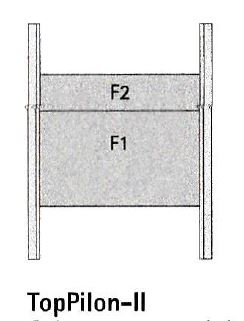

COLUMN MOUNTED BOARDS
1. Columns:
Shall be made of aluminum extrusion with integrated guide flanges for board runners, which are designed to carry the complete load. The columns shall be provided with brackets for permanent anchoring to the floor, wall or ceiling. Single columns shall be expandable into double or triple units. Columns to be separate units to allow for ease of maintenance. System shall have no horizontal cross members which leaves rear wall free of obstructions. This extra space can be utilized for larger rear or front projection screen.

The writing surfaces shall attach to the board runners, which slide vertically within the guide flanges and shall be balanced by adjustable counterweights running inside the columns. A free and quiet run to be guaranteed by pulleys provided with ball bearings. Rattling or scratching noises from counterweights inside the columns shall be eliminated by installation of Teflon caps to top and bottom of counterweights.

Counterweights are to be square, hollow tubes which allow for on-site fine adjustment by adding or removing weight. Counterweights and board runners shall be connected by a heavy duty aircraft type steel cable. Each board runner (two per board) shall be equipped with four (4) polymid slide-guide free-running rollers to guarantee a smooth, noiseless and non-binding board movement. The board runner will be installed in a concealed manner to avoid possibilities of injuries while in use. Sliding motion of boards shall be softly cushioned at upper and lower limits of vertical travel by rubber disc and spring. To avoid injury, front surfaces and exposed edges of columns shall be well rounded with a minimum radius of five mm (0.2 inches). Inner splines will be provided to allow for attachment of, at any point, various accessories without causing movement or flexing of column.

2. Writing Surfaces: Panel structure shall be as follows:
Sandwich panel of 1-1/2 ± thickness, consisting of honeycomb core, with top layer of 0.11" dense chipboard on front and reverse side to provide a rigid, even and warp-free support structure for the porcelain steel and chalk writing surfaces which are to be directly bonded to the front side of the sandwich panel. Reverse side of the panel shall be provided with a backer sheet of corrosion free steel to achieve a symmetrical, warp-free build-up. Regardless of writing surface size, panels shall be completely free from buckling or bending.

a. Chalk boards - shall be a minimum of twenty-eight gauge special quality steel with porcelain enamel coating on front and reverse side. Coating to be a high fired type porcelain with a minimum of 0.003" thickness applied at over 1400 degrees F. The writing surface is to be glare free, non-glossy and of highly uniform texture to achieve superior writing ability

Writing surface color shall be black for definition and contrast upon use of white or colored chalk. Reflectance factor shall be 17.5% with plus or minus 5% maximum tolerance and shall not vary as the result of wear or use.

Papers can be attached with magnets or picture clamps.

b. Drymarker Boards - shall be a minimum of twenty-eight gauge special quality steel, with porcelain enamel coating on front and reverse side. Coating (color to be selected by architect) to be high fired type porcelain with minimum 0.003" thickness applied at over 1500 degrees F. Writing surface shall be glossy, smooth, free from hairline cracks, stain and scratch resistant for easy writing with dry marker pens. Easy cleaning shall be possible with clean felt eraser or clean cloth. Only periodic maintenance cleaning, using paper towels or lint free cloths moistened with water or non-oily mild detergent, will be required to prevent build-up of residue.

Writing surface color shall be white to reduce glare. Papers and drawings can be attached with magnets or picture clamps.

c. Trim Profiles - shall be aluminum extrusions and surround entire board, except as noted at static boards. Extrusion shall be bonded directly to steel writing surface to prevent moisture intrusion. To avoid injuries, all trim profile edges must be provided with a radius of there mm (0.12") minimum. Corner pieces shall have a minimum radius of twelve mm (1.2"). Trim profile finish shall be a powder coating, color as selected by architect. All surrounding trim profile shall accept picture clamps, hooks, flip chart holder, chalk or pen rail and handles in a temporary or permanent fashion.

Accessories:
The following accessories shall be available as options, or supplied as indicated on contact documents:

Picture clamps
Picture hooks
Flip Chart Holder
Magnets
Handles
Chalk/pen rail

3. Projection Screens
Projection screen mounted on left and/or right. Matte white, melamine resin coated with aluminum frame, tilting to 20 degrees.

Wrap around projection screen surface with snap button style on back side. One inch square tubular frame equipped with snaps on back side to fit surfaces with crank tilt. Screen and frame are to be mounted in tiltable mechanism with a twenty degree stepless adjustment for keystone image elimination.

QUALITY - SAFETY - STYLE

DOUBLE INFORAIL SYSTEM

Easily accessible chalk boards, tackboards, and places to hang large drawings, charts, etc. Indispensable for display of information for general use and for discussions and meetings. This well-designed system consists of a series of writing surfaces, tackboards and projection surfaces.

Every board is easily attached and removed as required and the permanently mounted rails are also ideal for displaying plans, charts, and other larger documents, held in position with picture clamps or magnets.

Flexibility is the system's big advantage with hanging rails mounted whenever required, any board or surface can be moved and interchanged from one room to another.

Tables and chair add to the harmony of the furnishings.

QUALITY - SAFETY - STYLE

Trans Table™ tradename by Bretford

Voted Best of Competition/Gold Award - NeoCon 1996 by Facilities Design Management

The Trans Table incorporates inboard wheels in the leg to help ease the burden of rearranging the training room. Simply raise the left end of the table and let the wheels do all the work! No longer do you have to drag the table across the carpet or fold it up to reposition it in another area. When the Trans Table has reached its desired destination, turn the brake knob on the right leg to disengage the wheels. Save your back, save your money, save your time.

QUALITY - SAFETY - STYLE

SuperMagnet

Heavy-duty magnet for all your posting and presentation needs. 35 mm (1-3/8") diameter, round with high-impact plastic cover. Available in neutral gray/white or custom colors and finishes.

Tensive strength ± 3.5 lbs. (1600 gm,)

Holds even the heaviest charts or maps securely in place without that slow, yet annoying downward travel along your steel white board. The perfect accessory for all the steel boards and rail systems!
